In Situ Raman Electrochemical Cell for Operando Raman Spectroscopy

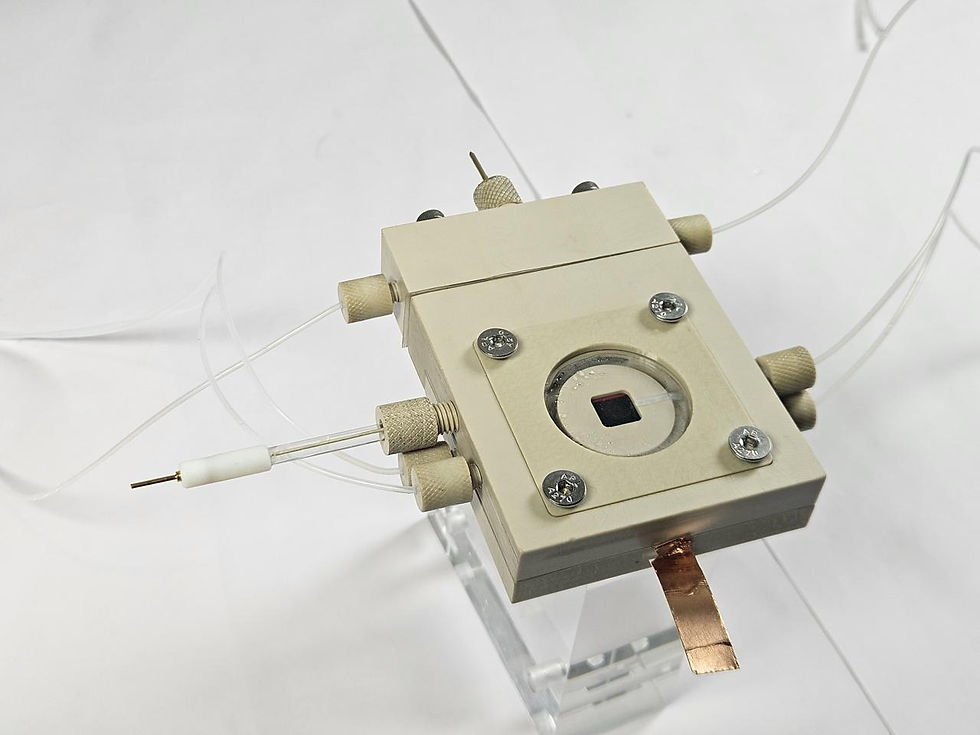

In Situ Raman Electrochemical Cell

The In Situ Raman Electrochemical Cell is a specialized electrochemical cell designed for in situ and operando Raman spectroscopy of electrochemical reactions. The cell provides optical access to the electrode/electrolyte interface through a quartz window, allowing Raman measurements to be performed during electrochemical operation.
The cell features separate anode and cathode chambers, a defined membrane placement, electrolyte inlet connections, gas inlet, and dedicated ports for the reference and counter electrodes. The flow-channel configuration enables controlled electrolyte and gas delivery during electrochemical experiments.

Key Features
Designed for in situ / operando Raman spectroscopy
Quartz optical window for Raman laser access
Separate anode and cathode chambers
Membrane-based two-compartment configuration
Integrated electrolyte flow channels
Gas inlet for controlled gas delivery
Dedicated reference electrode port
Dedicated counter electrode port
Suitable for real-time electrochemical characterization
Compact laboratory-scale design
Custom configurations available

Technical Specifications
Product Type: In Situ Raman Electrochemical Cell
Application: In Situ / Operando Raman Spectroscopy
Cell Configuration: Two-Compartment Electrochemical Cell
Anode Chamber: Provided
Cathode Chamber: Provided
Membrane: Membrane placement provided
Optical Window: Quartz
Quartz Window Diameter: Ø35 mm
Electrolyte Connections: Anolyte / Catholyte Inlet
Gas Connection: Gas Inlet
Reference Electrode: Dedicated RE Port
Counter Electrode: Dedicated CE Port
Overall Dimensions: 105 × 75 mm
Customization: Available

Applications
In Situ Raman Spectroscopy
Operando Raman Electrochemistry
Electrochemical Reaction Monitoring
Electrocatalysis Research
CO₂ Reduction Reaction (CO₂RR)
Water Electrolysis
HER & OER Studies
Catalyst Characterization
Electrode/Electrolyte Interface Studies
Energy Conversion Research

Customization
Metnmat Innovations can develop custom in situ Raman electrochemical cells according to specific experimental requirements, including optical-window configuration, chamber geometry, membrane arrangement, electrode ports, gas connections, electrolyte flow paths, and overall cell dimensions.
Contact Metnmat Innovations for customized in situ Raman electrochemical cell requirements.
