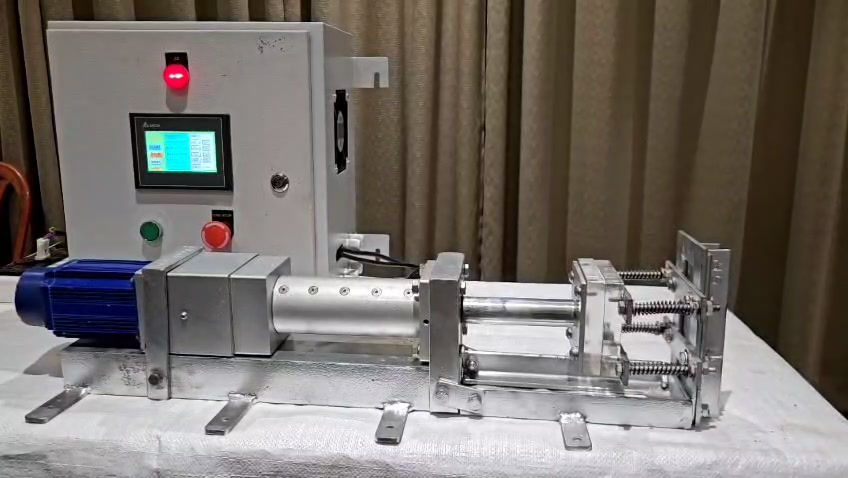

Triboelectric Measurement Setup

1. Actuation Mechanism
•    Utilizes a high-precision linear actuator driven by a stepper motor
•    Enables smooth, continuous back-and-forth motion
•    Ensures consistent and stable operation
2. Motor Driver & Controller
•    Integrated high-performance driver and controller system
•    Offers precise control over speed, acceleration, and motion profiles
•    Features customized software to adjust key parameters such as:
o    Pressure
o    Velocity
o    RPM
o    Other dynamic motion settings
3. Plate Assembly
•    Comprises two acrylic bases (100 mm × 100 mm each)
o    One plate is fixed
o    The other is mounted to the linear actuator for dynamic motion
4. Power Supply Unit
•    Robust and reliable power unit
•    Ensures uninterrupted performance of the motor, driver, and controller systems
Technical Specifications
•    Travel Length: 100 mm
•    Feed Speed: 200 mm/sec (100 mm forward + 100 mm return)
•    Adjustable Plate Separation: 2 mm to 10 mm
•    Control System: Fully software-controlled interface
