Swagelok-Type Two-Electrode Battery Test Cell

Swagelok-Type Two-Electrode Battery Test Cell

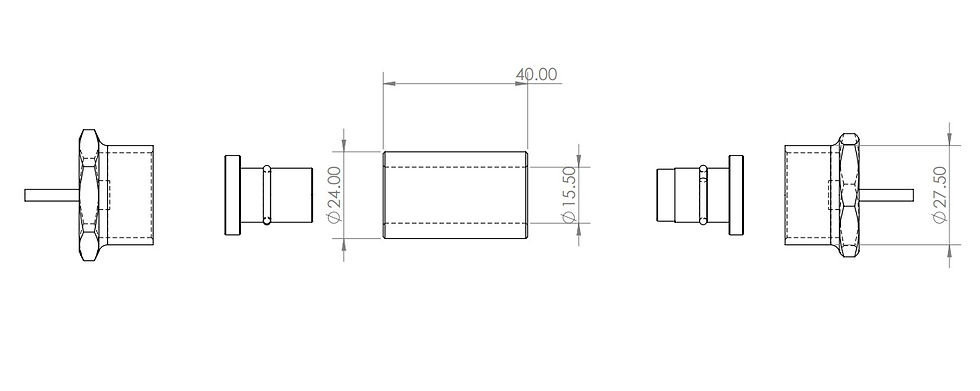

The Swagelok-Type Two-Electrode Battery Test Cell is a reusable laboratory platform for evaluating battery electrodes, electrolytes, separators, and electrochemical materials. Its six-part modular compression design allows the electrode assembly to be installed, compressed, removed, and replaced between experiments. The two-electrode configuration consists of an anode and cathode, with the separator and electrolyte positioned according to the selected battery chemistry.
The cell body is manufactured from PTFE, providing a chemically resistant and electrically insulating housing for laboratory electrochemical applications. 316 stainless-steel components provide .
The standard 20 mm internal diameter allows the cell to accommodate relatively large research electrodes, while 10–20 mm customized configurations can be supplied for different electrode geometries. The cell is suitable for Li-ion, Na-ion, Zn-ion and solid-state battery research, as well as broader electrochemical material evaluation.

KEY FEATURES
Two-electrode battery test configuration
PTFE cell body
316 stainless-steel structural components
20 mm standard internal diameter
10–20 mm customizable internal diameter
Customizable electrode size
Compression-based assembly
Reusable laboratory test platform
Suitable for battery material research
Suitable for electrolyte and separator evaluation
Compatible with laboratory electrochemical testing systems

TECHNICAL SPECIFICATIONS
Product Type: Swagelok-Type Battery Test Cell
Cell Configuration: Two-Electrode System
Electrode Arrangement: Anode / Separator / Cathode
Cell Body Material: PTFE
Structural Components: 316 Stainless Steel
Standard Internal Diameter: 20 mm
Custom Internal Diameter: 10–20 mm
Electrode Size: Customizable
Assembly Type: Compression-Based
Cell Type: Reusable Electrochemical Test Cell
Application: Battery & Electrochemical Research
Customization: Available

BATTERY RESEARCH APPLICATIONS
Li-ion battery research
Na-ion battery research
Zn-ion battery research
Solid-state battery research
Battery electrode evaluation
Anode material testing
Cathode material testing
Battery material screening
Electrolyte evaluation
Separator evaluation
New-generation battery research
Electrochemical energy-storage research

ELECTROCHEMICAL APPLICATIONS
Electrochemical material testing
Electrode characterization
Electrolyte studies
Galvanostatic charge-discharge testing
Cyclic voltammetry (CV)
Electrochemical impedance spectroscopy (EIS)
Battery cycling studies*
Electrode/electrolyte interface studies
